Serie IHP, stainless steel high pressure filters 400 bar

IHP stainless steel high pressure filters are designed for high efiicent removal of solid particles, water, oil aerosols, hydrocarbons and other vapours from compressed air systems. To meet the required compressed air quality appropriate filter element (n5, n25, M, S, A) must be installed into filter housing.

Characteristics

operating pressure	400 bar
volume flow rate	40 to 715 Nm3/h
connections	1/4’’ to 2’’
operating temp. range	1,5 to 65 °C
material	stainless steel 1.4301

Applications

• general industrial applications
• automotive
• electronics
• food and beverage
• chemical
• petrochemical
• plastics
• paint

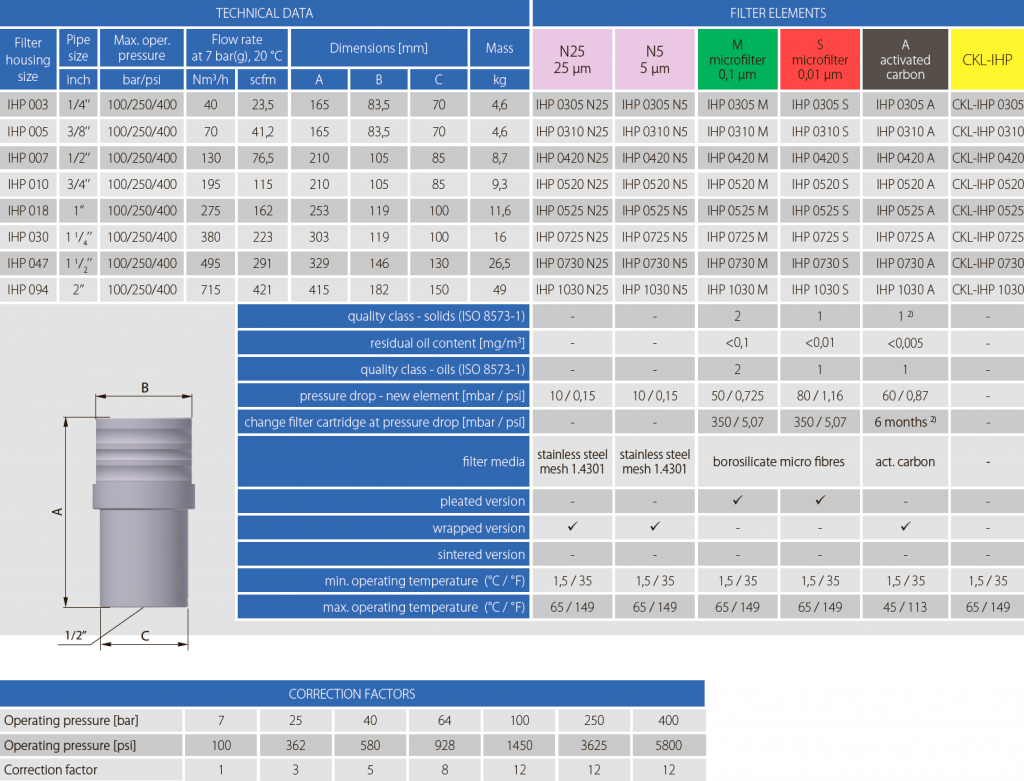

Technical data

¹⁾ Filter elements ’A’, must be changed periodically to suit application, but at least 6 months. Activated carbon filters must not operate in oil saturated conditions.
²⁾ Valid if ''S'' filter installed upstream.
